Challenges Sealing Foil Pouches: What Packaging Engineers Need to Know
Heat sealing foil pouches should be straight forward, but foil introduces unique challenges that can quietly erode seal strength, cosmetic quality, and process reliability if the system is not designed correctly.
For PackworldUSA and TOSS Machine Components, Inc., these are exactly the kinds of problems our impulse sealing technology is built to eliminate.
Why Foil Pouches Are So Demanding
Foil is typically used as a high performance barrier layer to protect products from oxygen, moisture, light, and other environmental factors, but the foil itself is not heat sealable, so it is laminated to a sealant layer that forms the actual seal. This structure delivers excellent barrier performance but can create unexpected challenges in both seal strength and cosmetic appearance.
Foil’s ability to conduct energy very efficiently is central to these issues. While foil is beneficial for barrier performance, it can be problematic for impulse heat sealing systems that are not engineered specifically for foil, because the foil can rapidly pull heat from the sealing element and change seal conditions over time.
Energy Management and Seal Strength
Impulse heat sealing systems use a low mass heating element that energizes only during the sealing cycle, staying off between cycles. When this element encounters foil, the foil acts as a heat sink, drawing energy out very quickly. On systems built with undersized power transformers, the sealer may not be able to replenish that lost energy fast enough, resulting in progressively colder sealing conditions and decreasing pull strength as production continues.
TOSS Machine Components and PackworldUSA address this by designing impulse sealing systems with power transformers large enough to instantly replace the heat lost to foil’s conductivity, keeping sealing conditions stable from the first cycle to the last. This philosophy aligns with PackworldUSA’s broader focus on precise, repeatable impulse sealing for demanding manufacturing environments.
Sizing the Sealer to the Pouch
- Alternate pouch position across the bar so the foil does not continuously draw heat from one spot (effective when pouch width is roughly one-third or more of the usable sealing area).
- Seal more than one pouch per cycle to better utilize the full sealing length and stabilize temperature distribution while increasing throughput.
Cosmetic Defects: Managing Heat Wrinkles

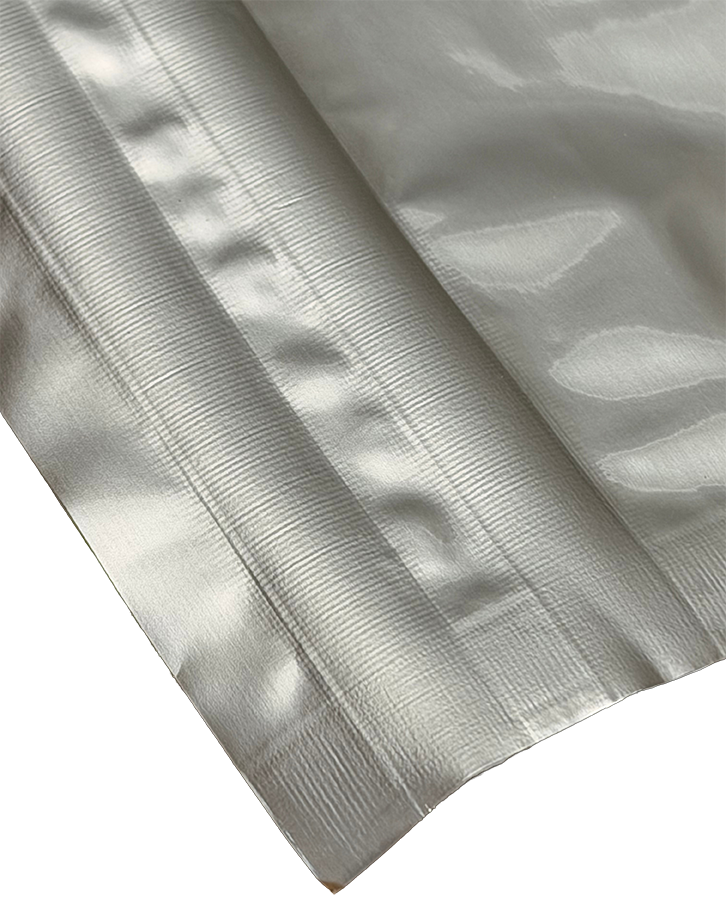

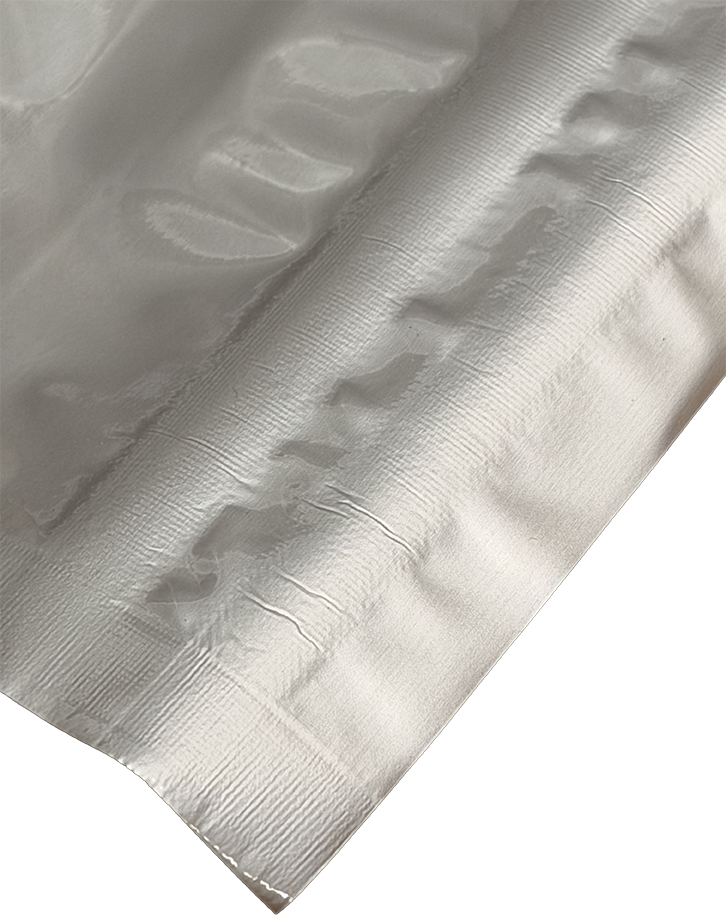

Even when pull strength is acceptable, foil’s conductivity can cause cosmetic defects that look like seal failures. One of the most common is the appearance of small channel-like blemishes, or “heat wrinkles,” running perpendicular to the length of the seal. These form because foil expands and contracts faster than other layers in the laminate during heating and cooling.
In many applications, these wrinkles are cosmetic only, but in markets like medical device packaging they may be interpreted as potential sterile barrier breaches and are therefore unacceptable. The primary root cause is typically insufficient or uneven pressure from the sealing system, whether due to inadequate overall force or variable pressure along the sealing path from uneven surfaces or tooling deflection.
Increasing and equalizing pressure across the seal path is one way to reduce heat wrinkles. Another effective tactic is using a more textured tape to cover the heat seal bands; the added texture helps hold the laminate in place during the cycle and also helps visually mask minor wrinkles that may form.
How PackworldUSA and TOSS Help
For manufacturers working with foil pouches, particularly in regulated or high-value applications, partnering with sealing specialists who understand these nuances is crucial. TOSS Machine Components and PackworldUSA design impulse sealing systems specifically to manage foil’s high conductivity, maintain stable sealing conditions, and deliver both strong and cosmetically clean seals.
Our approach combines robust power capacity to replenish heat instantly, advanced impulse control for consistent conditions, application-specific tooling and sealing-area sizing, and process guidance around pouch positioning, multi-up sealing, and tape selection. Whether you are fighting declining pull strengths, cosmetic heat wrinkles, or the challenge of scaling foil pouch production without sacrificing quality, our teams can help engineer a solution that is stable, efficient, and ready for production.
