PW3416 and PW3424 Horizontal Touch Screen Heat Sealing Machines

PackworldUSA PW3416 vacuum heater sealer

The PW3400 validatable impulse heat sealer, with TOSS Touch Screen control, provides a graphical display of temperature/ time/ pressure with various time sequence possibilities and visual/audible alarms.

Clean Room Precision Heatsealer

Fully validatable and calibratable, ISO 11607, and RoHS compliant. This clean room heat sealer, with the TOSS Touch Screen control, is designed for quality, reliable sealing of plastics and sealable composites in a Medical Packaging, Research & Development, or production environment.

Touch Screen Precision Heatseal Control

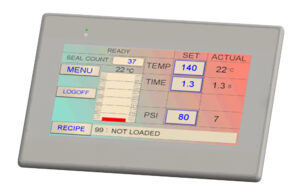

This versatile impulse heat sealer, with TOSS Touch Screen control, provides a graphical display of temperature / time / pressure with various time sequence possibilities and visual / audible alarms. Time, temperature and pressure are programmable with the cooling cycle controlled by either time or temperature. Process controls are displayed in real time. Validation is easier than ever through the menu driven single touch process. See product detail.

Touch Screen Features

AUTOCAL (automatic Zero Calibration) with multi point calibration • Recipe storage • Re-settable seal counter • Graphical temperature display • Alarm diagnostics • Password protection • Watchdog monitoring checks temperature while idle.

Link image to PackworldUSA and TOSS Technology videoAnimation of Touch Screen Controls

The New TOSS Touchscreen Control is easier than ever to achieve Perfect Seals... Every Time! CLICK HERE

Models PW3416 & PW3424
Standard Features Vacuum/Purge, Vacuum Only, Seal Only • Automatic Cut-off at selected vacuum or time level. Available in 16" and 24" models • Compressed air exhaust outlet • Low pressure closing/high pressure sealing • Single or Dual band operation • °C or °F • Emergency Stop Button • Can be fitted with any one of over 300 different TOSS Alloy-20® C heatseal bands depending on the results desired.
Options Adjustable Stainless Steel Stand • Stainless Steel product table • Water-cooled Jaws • NIST Traceable certification • CE Compliant
Specifications Heat Seal Length: 16 and 24 Inches • Heat Seal Width: 2 - 10 mm • Temperature Range: 300°C - (Optional 500°C) • Timers: 0.1 - 98.9 Sec • Power: 115 or 230 VAC 50/60 Hz • Air Pressure: 80 - 100 psig

All PackworldUSA built machines are fully validatable, ensuring that your packaging will meet even the most demanding requirements. We offer precision heat sealing equipment ranging from bench top models to floor-standing production machines, all powered by TOSS Technology with advanced PIREG® temperature control - The Optimum Sealing System - for consistent, validatable and repeatable results, every time.
