PW4214 Compact Cleanroom Ready Remote Sealing System
Engineered for uncompromising performance in tissue banks, labs, and other space-constrained environments, the PW4214 helps maximize valuable workspace without compromising aseptic technique or process safety.
Validatable, Repeatable, Consistent

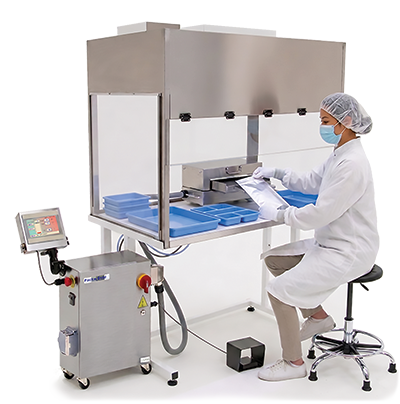

PackworldUSA designed the PW4214 to be a compact, remote impulse heat sealing system to deliver repeatable, high-integrity seals within space-constrained, controlled environments such as biological safety cabinets and laminar flow hoods, commonly used in tissue banking and regenerative medicine workflows.
The PW4214 helps maximize valuable workspace without compromising aseptic technique or process safety. Featuring a lightweight, low-profile remote sealing head that integrates easily into existing containment equipment and fixtures, the modular PW4214 system allows technicians to seal flexible sterile barrier systems within confined spaces.
| Models | PW4214 Compact Remote |
| Applications: | Medical Devices • Pharmaceuticals • Consumer Product Goods • Cosmetics • Liquid Packaging • Samples or Specimens • Research & Development • Electronics |
| Features: | Small Footprint for Confined Spaces • Easy to Use Touch Screen Interface • Easy Maintenance and Cleanability • Cleanroom Ready • Validatable and Compliant with:ISO 11607, 21 CFR Part 11, RoHS, • Configurable for ˚C or ˚F • On Board Thermocouple for: Redundant Temperature Monitoring, Easy Temperature Verification and Calibration |
| Benefits: | Calibration made simple • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured |
| Options: | Dual Bands: Heat from Both Sides of the Film • Multiple HMI Mounting Options • High Temperature Configuration • Product Support Table • NIST Traceable Certification • NIST Instrument Kit • Validation Package • CE Compliance • 115VAC or 230VAC for Domestic and International Markets |
| Features | Heat Seal Length: 13 Inches • Heat Seal Width: 8mm (or custom width) • Temperature Range: up to 275˚C • High Temperature Range: up to 450˚C (if configured) • Timers: 0 - 99.9 Sec • Seal Pressure: up to 100 PSI • Power: 115V, 15 amp or 230VAC single phase 20A • Dimensions: 16" x 19" x 7" • Air Requirements: 110 PSI max or 10 PSI above set seal pressure value • Seal Head Weight: 35 lbs • Seal Head Size: 19” W x 9” T x 9” D • Weight: 56 lbs. |
All PackworldUSA built machines are fully validatable, ensuring that your packaging will meet even the most demanding requirements. We offer precision heat sealing equipment ranging from bench top models to floor-standing production machines, all powered by TOSS Technology with advanced PIREG® temperature control - The Optimum Sealing System - for consistent, validatable and repeatable results, every time.
